Anschutz 1913 In 1918 Stock

ANSCHUTZ 1913 IN 1918 STOCK

Small-bore model 1913 with aluminum stock Precise:
The ANSCHUTZ model 1913 "Super Match" is preferably used in international and national competitions. With this rifle in numerous national, international, and Olympic top results were achieved. World and European champions as well as thousands of successful shooters around the world rely on this rifle.

Delivered with
Depending on configuration (barreled action, sight set, and grip) and additional: Transport gun case MEGA, hand stop 6226, fore-end riser block, accessory box, screwdriver, Allen key, manual and original test target.

Delivered without sight set.

Technical Data

• Material: Steel
• Finish: blued
• Caliber: .22 l.r.
• Rifling (mm): 674
• Length of twist (mm): 420
• Number of grooves: 8
• Barrel version: heavy
• Barrel handling: blued
• Barrel length (mm): 690
• Muzzle diameter (mm): 25.7
• Safety: yes
• Signal pin: yes
• Version: right
• Length of barreled action (mm): 850
• Weight (g): 3100

ANSCHUTZ target two-stage and single-stage triggers have always set the standard for quality, reliability, and precision. It is not without reason that ANSCHUTZ triggers are known as the best in the world!

ANSCHUTZ match triggers are a big part in the success of all ANSCHUTZ target and hunting rifles. The high grade of accuracy guarantees consistent trigger properties. The various adjusting properties are extraordinary characteristics which meet all requirements of target shooters around the world.

Technical Data

• Type: Two-stage trigger 5018
• Version: right
• Tilting range (mm): 11
• Adjustment of the trigger shoe (mm): 23
• Trigger blade: 007434
• Color of the trigger shoe: Silver
• Safety: Sliding safety catch on the left side
• Trigger weight, adjusted (g): 125
• Adjustment of the trigger weight (mm): 60-490
• Optional adjustable to two-stage: yes

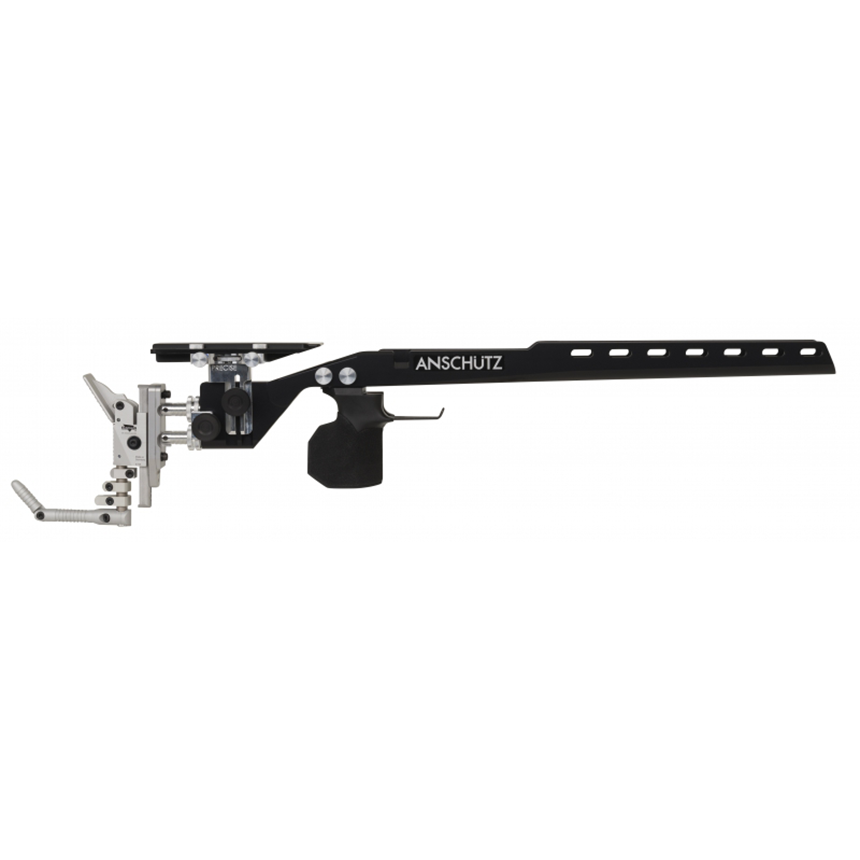

STOCK

• Milled out of high strength aluminum, this stock has a very slim fore-end with a large radius and is suitable for all hand sizes.
• Ventilated holes in the fore-end provide for a constant temperature of the barrel when shooting
• Optimum vibration behavior, stability, and shooting precision by wedge-shaped design calculated by vibration test analysis.
• The pistol grip is variably adjustable to both sides and can be turned. The unique and variable adjustment possibilities avoid an inadvertent movement with the help of threaded rods.
• Precise millimeter scales at the cheek piece adjustment, height adjustment, grip adjustment, and at the fore-end allow accurate reproduction of settings.
• Due to various positions and allow an optimum repositioning of adjustments and accessories.
• Multifunctional, stable, and variable cheek piece notch adjustment with especially large adjusting range and precise adjustment of horizontal and vertical adjustment allows an optimum adaptation/correction to the position. The cheekpiece can be adjusted in four different ranges.
• Stock extension can be positioned continuously with strong threaded columns and knurled nuts.
• The actuated, positive form and force-fit clamping on the columns guarantee the utmost stability.
• Large knurled head screws at cheek piece and length adjustment offer high operating comfort without having to use any tools.

Total length (cm): 109-114
The total weight (kg): 5.8

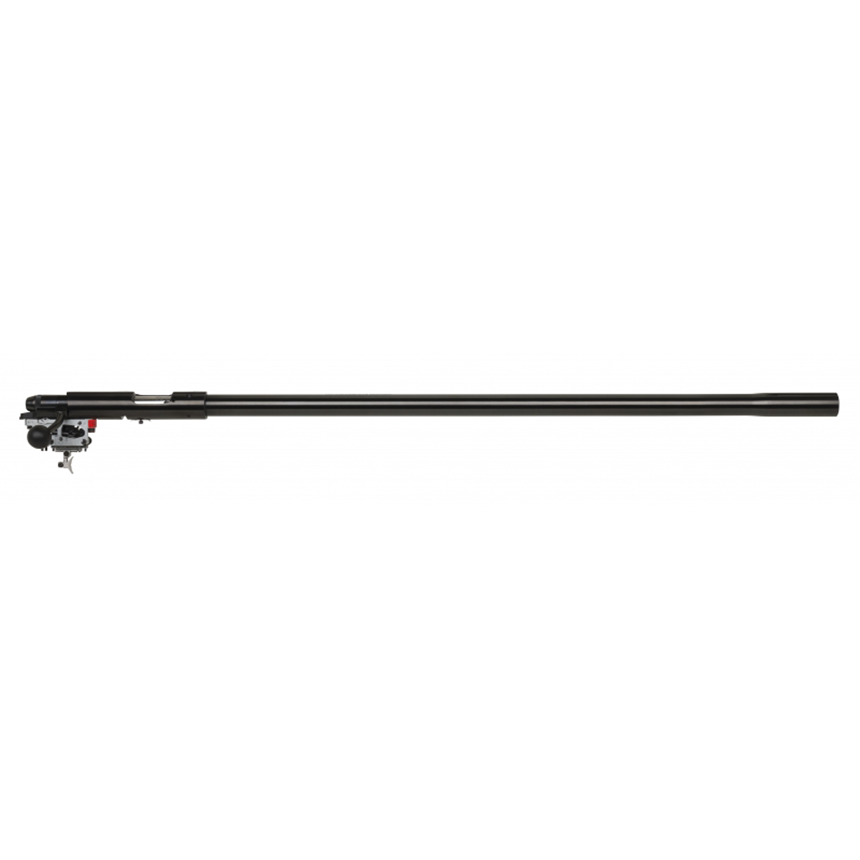

Barreled Action

• Material: Steel
• Finish: blued
• Caliber: .22 l.r.
• Rifling (mm): 674
• Length of twist (mm): 420
• Number of grooves: 8
• Barrel version: heavy
• Barrel handling: blued
• Barrel length (mm): 690
• Muzzle diameter (mm): 25.7
• Safety: yes
• Signal pin: yes
• Version: right
• Length of barreled action (mm): 850
• Weight (g): 3100

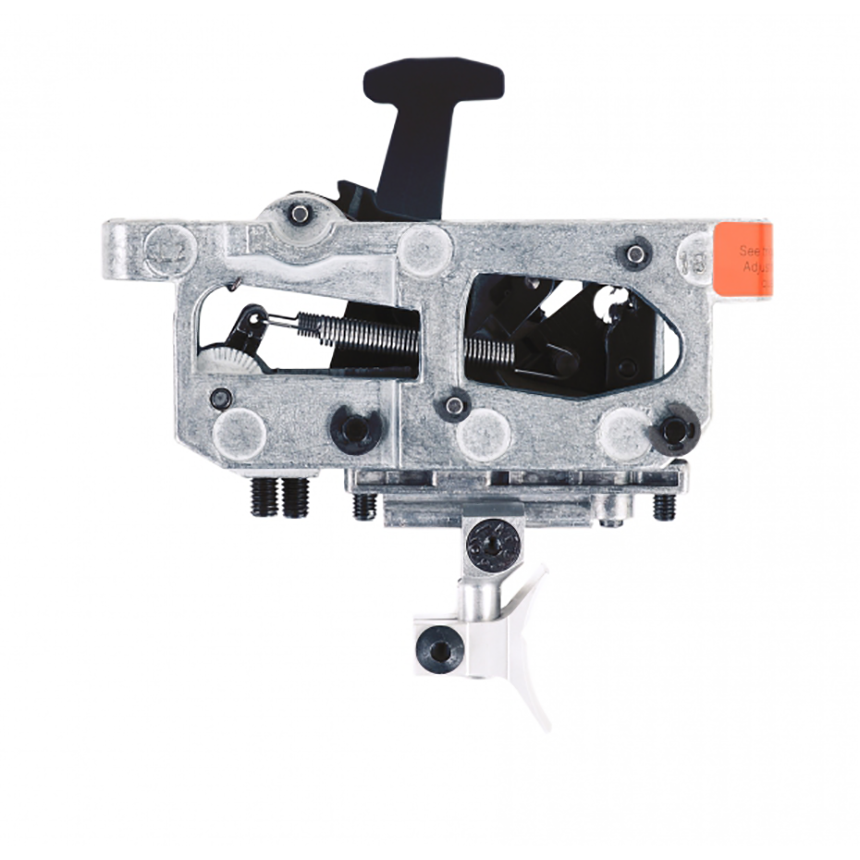

Trigger

• Type: Two-stage trigger 5018
• Version: right
• Tilting range (mm): 11
• Adjustment of the trigger shoe (mm): 23
• Trigger blade: 007434
• Color of the trigger shoe: Silver
• Safety: Sliding safety catch on the left side
• Trigger weight, adjusted (g): 125
• Adjustment of the trigger weight (mm): 60-490
• Optional adjustable to two-stage: yes

Stock

• Aluminum grooved rail on the lower side: yes
• Length of stock (mm): 680
• Weight (g): 2600
• Butt plate: 2213-8700
• Material: Aluminum
• Stock color: black
• Stock finish: anodized
• Length of pull (mm): 290 - 355
• Grip: yes
• Grip material: PRO-Grip
• Grip color: black

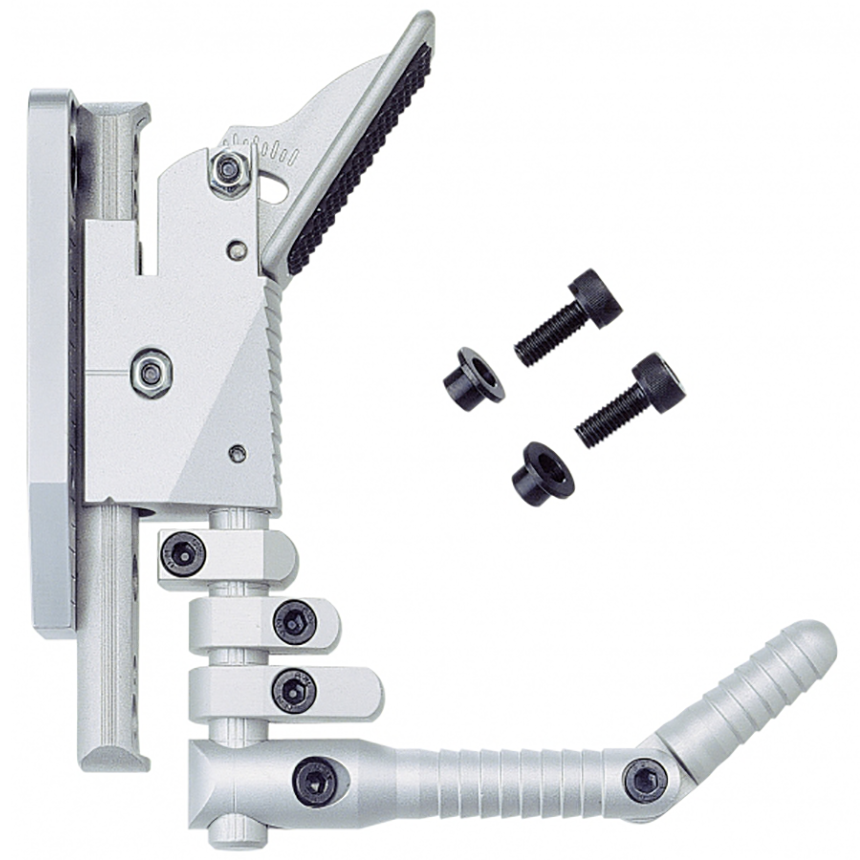

Butt Plate

• Material: Aluminum
• Adjustable (mm): 130 mm
• Weight (g): 460 g

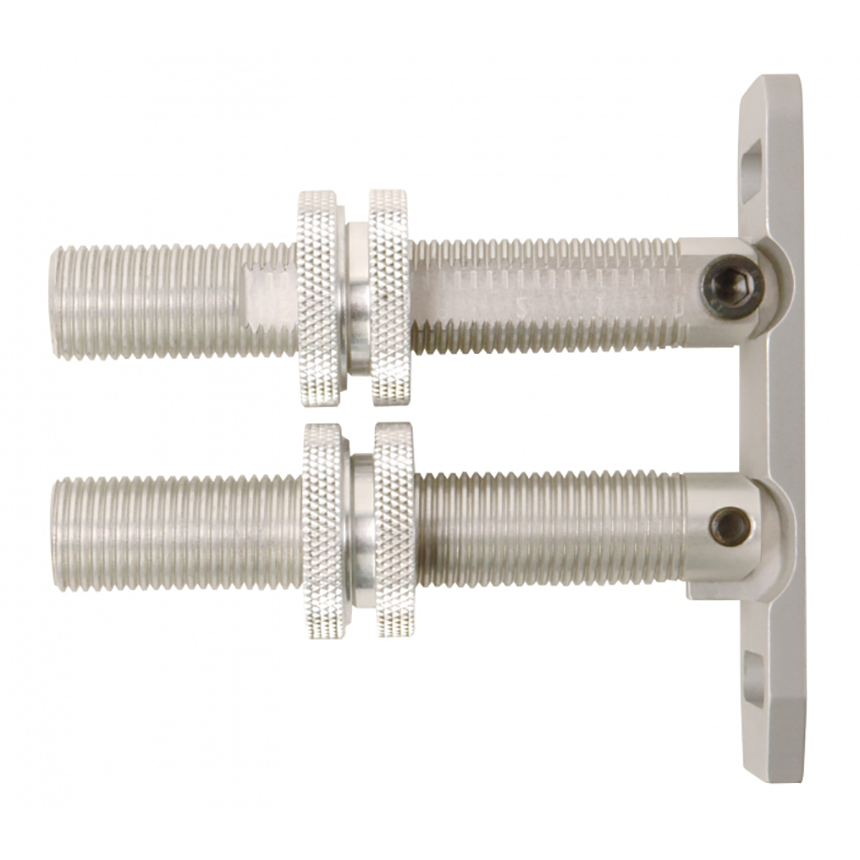

Butt Plate Carrier

• Material: Aluminum
• Column distance (mm): 30
• Column diameter (mm): 15
• Range of adjustment (mm): 70
• Length (mm): 90
• Weight (g): 140

Cheekpiece

• Material: Aluminum
• Color: silver/black

Fore-end

• Material: Walnut
• Height (mm): 38
• Color: black

Grip

• Material: PRO-Grip
• Color: black
• Size: L
• With trigger guard: yes
• Version: right
