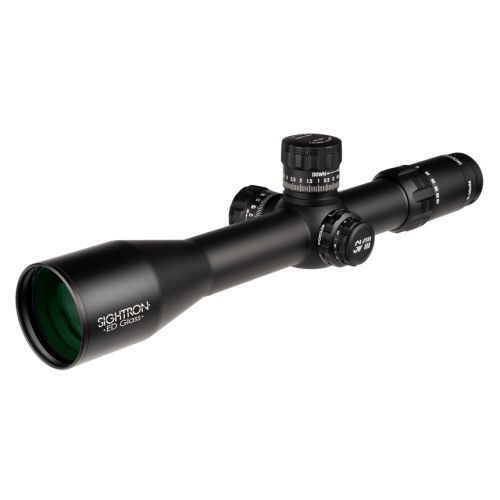

Sightron SVIII ED 5-40x56 FFP MH-6 IR Scope

Sightron SVIII ED 5-40x56 FFP Rifle Scope w/Zero Stop

Extra-Low Dispersion (ED) Glass
40mm Tube Design for Extreme W/E Adjustments
NEW - MC-777 Fully multi-coated optics for superior light transmission
Precision Tactical Turrets with internal Zero Stop
Exclusive ExacTrack Windage and Elevation adjustment system
Illuminated MH-6 First Focal Plane Reticle design
Screw in Aluminum lens covers
Lifetime Performance Guarantee

DESCRIPTION
The SVIII 5-40x56 ED is a Zero-Stop First Focal Plane riflescope. It features ED Glass, a new internal zero-stop mechanism, and a First Focal Plane illuminated MH-6 reticle. Designed for long range target shooting and hunting, the scope provides 20 MILS of windage and 40 MILS of elevation with .1 Mil tactical knobs.  The windage and elevation knobs have 10 MILS per revolution.  The new 40 mm body tube is waterproof, shockproof and nitrogen charged.  Minimum focus is 10 meters.

The SVIII features ED (Extra-low Dispersion) Glass provides Long Range Shooters the brightness and clarity required for accurate target acquisition. The large oversized tactical knobs are finished in black matte with high visibility markings to quickly identify your scopes settings.  The Windage knob is marked for left and right so there is no second guessing when making adjustments. The new internal zero-stop mechanism provides a tactile and audible positive stop for dead-on zero settings.

For superior performance, Sightron created a new MC-777 multi-coated lens coating for increased light transmission and improved clarity. Sightron's patented ExacTrack Windage and Elevation system is standard on all models.  All reticles in this series are illuminated with a side mounted 11 position off/on rotary type dial which uses the CR2032 Battery.  The side mounted focus system has been redesigned for improved minimum focus performance.

The SVIII 5-40x56 ED FFP MH-6 includes the following:

Scope
3-inch Sunshade
CR2032 Battery
Screw in Aluminum lens covers
Allen wrench for knob and zero stop adjustments
40mm mount rings for Picatinny Rail
Wrench T-15 for 40mm mount rings
Lens Cleaning Cloth

ExacTrack W&E System Never experience drift with Sightron's patented windage and elevation adjustment technology. It provides proper alignment between the adjustments and the erector tube by maintaining the same constant and accurate point of pressure at zero or extreme adjustments.
Exclusive Optical Design Using the right materials for the right application, Sightron engineers build optical formulas around the best optical glass to reduce chromatic aberrations, improve color accuracy,  deliver excellent light transmission, and best-in-class resolution and sharpness.
MC-777 Multi-Coating Technology  Exclusive 7 Layer multi-coating process employs a new and revolutionary lens coating technology applied to both surfaces of the lens for maximum anti-reflection performance and the highest light transmission.
First Focal Plane Reticle The reticle size changes with magnification setting. Reticle values remain constant in relation to your target.
Reticle Material Etched Glass for a superior viewing experience
Shockproof Built to withstand high caliber recoil and accidental impact
Waterproof Rated at IPX7 waterproof standards
Fogproof Nitrogen gas charged for a lifetime of fog free use
Tube Construction Milled from a single piece of lightweight, industrial grade aluminum

Magnification 5-40x
Objective Lens Diameter 56mm
Eye Relief 3.8 - 3.7 inches
Field of View - Meters 7.22m - .9m @ 100 meters
Field of View - Yards 23.7ft - 2.9ft @ 100 yards
Tube Size 40mm
Turret Style Tactical (Resettable)
Zero Stop Yes
Click Value .1 MRAD @ 100 meters
Minutes Per Revolution 10 MRAD
Max Elevation Adjustment 40 MRAD @ 100 meters
Max Windage Adjustment 20 MRAD @ 100 meters
Parallax Setting 10 meters to Infinity
Focus Type Side Focus
Reticle Type MH-6 IR
Focal Plane First
Illumination Yes
Finish Matte Black
Waterproof Yes
Anti-Reflection Tech MC-777 Fully Multi-Coated
Fog Proof Yes
Length 16.8 inches
Weight 49.0 oz.
Sunshade Included
Item Number 29000
UPC Code 793139290007
Model Name SVIIISSED540X56FFPZSIRMH-6

The illuminated MH-6 is a mil-hash reticle designed for the SVIII Series.  It features a floating center dot with hash marks at .2 MIL spacing. The complete center section of the reticle offers daylight illumination with windage marks at full and half MIL elevations and is an excellent choice extra-long range target shooting.
MH-6 Measured in MILS - All Magnifications at 100 meters
A B C D E F G H I J
.2 .2 .1 .03 .075 .03 1 .03 .2 1
